Toyota Camry (XV70): Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during telephone and GPS antenna assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
|
Disconnect cable from negative battery terminal |
Perform steering sensor zero point calibration. |
Lane Tracing Assist System |
|
|
Pre-collision System | |||
|
Memorize steering angle neutral point |
Parking Assist Monitor System |
| |
|
Panoramic View Monitor System |
|
CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.
.png)
Click here
.gif)
PROCEDURE
1. REMOVE ROOF HEADLINING ASSEMBLY
Click here
2. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY WITH COVER (except Panoramic Moon Roof)

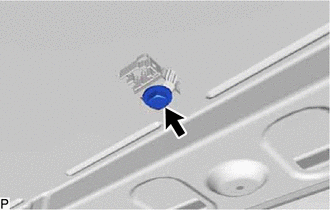

| (a) Disconnect the connector. |
|
.png)
| (b) Remove the bolt. |
|
.png)
(c) Pull the washer and holder as shown in the illustration and remove the telephone and GPS antenna assembly with cover.
.png)
.png) |
Remove in this Direction |
3. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY (except Panoramic Moon Roof)
(a) Pull the telephone and GPS antenna assembly in the direction indicated by the arrow (1) shown in the illustration to disengage the 3 claws and 2 guides.
.png)
|
|
Remove in this Direction (1) |
.png) |
Remove in this Direction (2) |
(b) Pull the telephone and GPS antenna assembly in the direction indicated by the arrow (2) shown in the illustration to disengage the guide and remove the telephone and GPS antenna assembly.
(c) When reusing the telephone and GPS antenna assembly:
| (1) Remove the seal. |
|
.png)
4. REMOVE TELEPHONE AND GPS ANTENNA ASSEMBLY (for Panoramic Moon Roof)
| (a) Disconnect the connector. |
|
.png)
| (b) Remove the nut and clip. |
|
.png)
(c) Disengage the 2 claws and remove the telephone and GPS antenna assembly as shown in the illustration.
.png)
|
|
Remove in this Direction (1) |
|
|
Remove in this Direction (2) |
