Toyota Camry Repair Manual XV70 (2018-2024) / Drivetrain / Axle And Differential / Rear Axle Hub (for 2wd Without Electric Parking Brake System) / Components

COMPONENTS

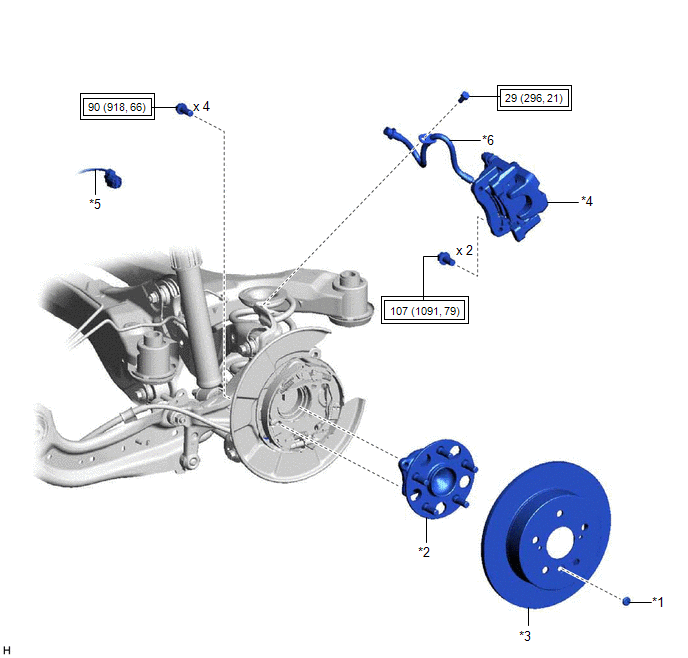

ILLUSTRATION

*1

PARKING BRAKE SHOE ADJUSTING HOLE PLUG

*2

REAR AXLE HUB AND BEARING ASSEMBLY

*3

REAR DISC

*4

REAR DISC BRAKE CALIPER ASSEMBLY

*5

SKID CONTROL SENSOR WIRE

*6

REAR FLEXIBLE HOSE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-
