Toyota Camry (XV70): Left Electric Parking Brake Actuator Control (C060B00,C060B11)
DESCRIPTION
|
DTC No. | Detection Item |
DTC Detection Condition | Trouble Area |
Memory | Note |
|---|---|---|---|---|---|
|
C060B00 | Left Electric Parking Brake Actuator Control |
|
| DTC stored |
An electric parking brake system malfunction is displayed on the multi-information display. |
|
C060B11 | Left Electric Parking Brake Actuator Control Circuit Short to Ground |
|
| DTC stored |
An electric parking brake system malfunction is displayed on the multi-information display. |
WIRING DIAGRAM
PROCEDURE
| 1. |
INSPECT NO. 2 PARKING BRAKE WIRE ASSEMBLY |
(a) Turn the ignition switch off.
(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.
OK:
The connector is securely connected.
(c) Disconnect the vR2 and v1 No. 2 parking brake wire assembly connectors.
(d) Check both the connector case and the terminals for deformation and corrosion.
OK:
No deformation or corrosion.
(e) Measure the resistance according to the value(s) in the table below.
|

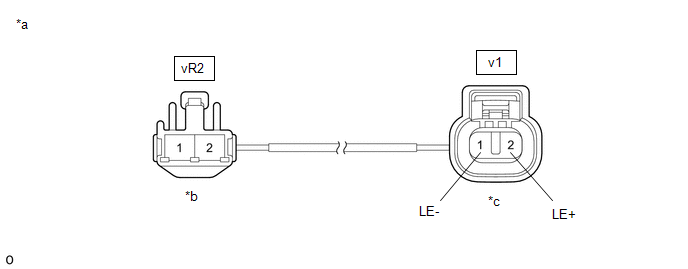

*a | Front view of No. 2 Parking Brake Wire Assembly |
*b | (to wire harness connector) |
|
*c | (to Parking Brake Actuator Assembly LH) |
- | - |
Standard Resistance:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
vR2-2 or v1-2 (LE+) - Body ground and other terminals |
Always | 10 kΩ or higher |
|
vR2-1 or v1-1 (LE-) - Body ground and other terminals |
Always | 10 kΩ or higher |
| NG | .gif) | REPLACE NO. 2 PARKING BRAKE WIRE ASSEMBLY |
|
.gif)
| 2. |
CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) - PARKING BRAKE ACTUATOR ASSEMBLY LH) |
(a) Turn the ignition switch off.
(b) Make sure the No. 2 parking brake wire assembly is securely installed.
(c) Disconnect the A34 skid control ECU (brake actuator assembly) connector.
(d) Disconnect the v1 parking brake actuator assembly LH connector.
(e) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
A34-13 (MRL+) or v1-2 (LE+) - Body ground |
Always | 10 kΩ or higher |
|
A34-12 (MRL-) or v1-1 (LE-) - Body ground |
Always | 10 kΩ or higher |
| NG | | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 3. |
INSPECT PARKING BRAKE ACTUATOR ASSEMBLY LH |
(a) Remove the parking brake actuator assembly LH.
Click here
.gif)
(b) Inspect the parking brake actuator assembly LH.
Click here
| OK | | REPLACE SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| NG | | REPLACE PARKING BRAKE ACTUATOR ASSEMBLY LH |
